COMPANY

intelligent design

Ting-Chin Co.® composites based in Taiwan and has failities in China, has been producing Ting-Chin Co.® composite panels since 2005. We concentrate on the R&D, producing and marketing of high- performance composite materials. By reason of these excellent features such as light- weight, high compressive strength, waterproof and environmentally friendly, these composite panels are now used worldwide in numerous different fields of applications. With the experience of collaborative works with our clients even custom complete machined parts and finished products made of Ting-Chin Co.® could be supplied.

Furthermore, the composite panel is so special that it also comes with our world-wide patented structure: The PP honeycomb core is covered by several layers of fiberglass with resin, and then baked in oven for around two hours. After forming, a melamine paper surface is added which you can choose any covering such as woods, marbles, concrete or even materials of your choice. Strong and 100% waterproof! It is the ultimate solution for lightweight outdoor constructive material. Let’s make new era of outdoor constructive applications together!

We are confident in supporting your specific projects’ requirements when optimizing your products and realizing your projects. Please feel free to contact us, we look forward to receiving your inquiries.

PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

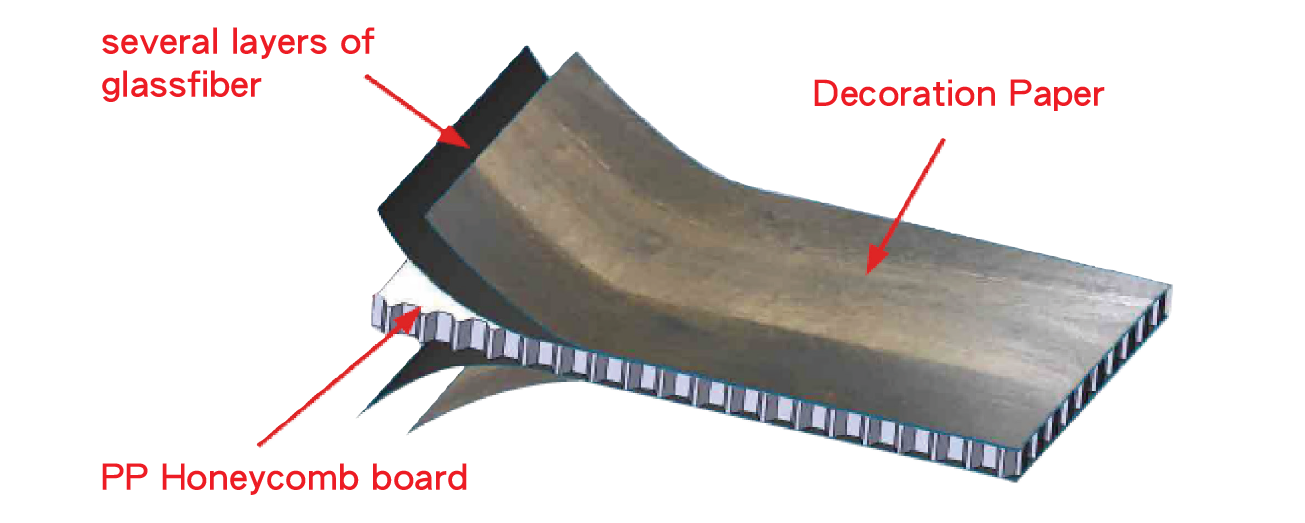

Ting-Chin Co.® is a high-tech thermoplastic sandwich panel, with PP honeycomb core and glass woven reinforced PP sheet on the two sides, moreover, also can be attached with abundant of face materials (such as FRP, wood grain sheet, aluminum sheet, stainless steel sheet, marble sheet, rubber sheet etc.) With good properties on light-weight, high compressive strength, environmentally friendly, waterproof, moisture-proof and corrosion resistant etc., Ting-Chin Co.® is widely used in camper vans, logistic trucks, mobile architectures , scaffolding, outdoor furniture, combination houses, home furnishing, industrial products, high-speed trains, aerospace, yachting and high-end packing materials etc.

describe

CERTIFICATES & HONORS

CERTIFICATES & HONORS

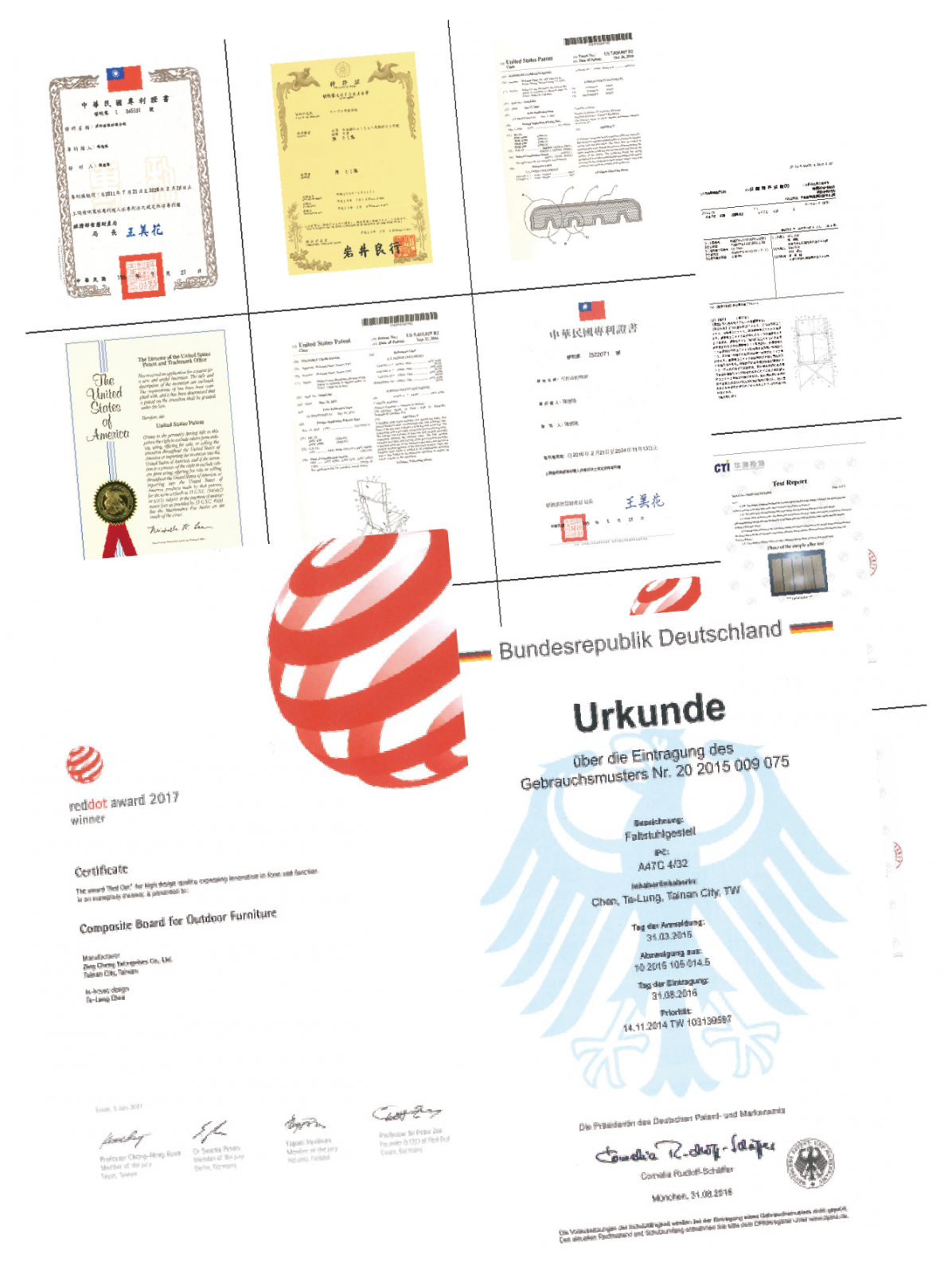

Parts of our honor and Patents:
honor

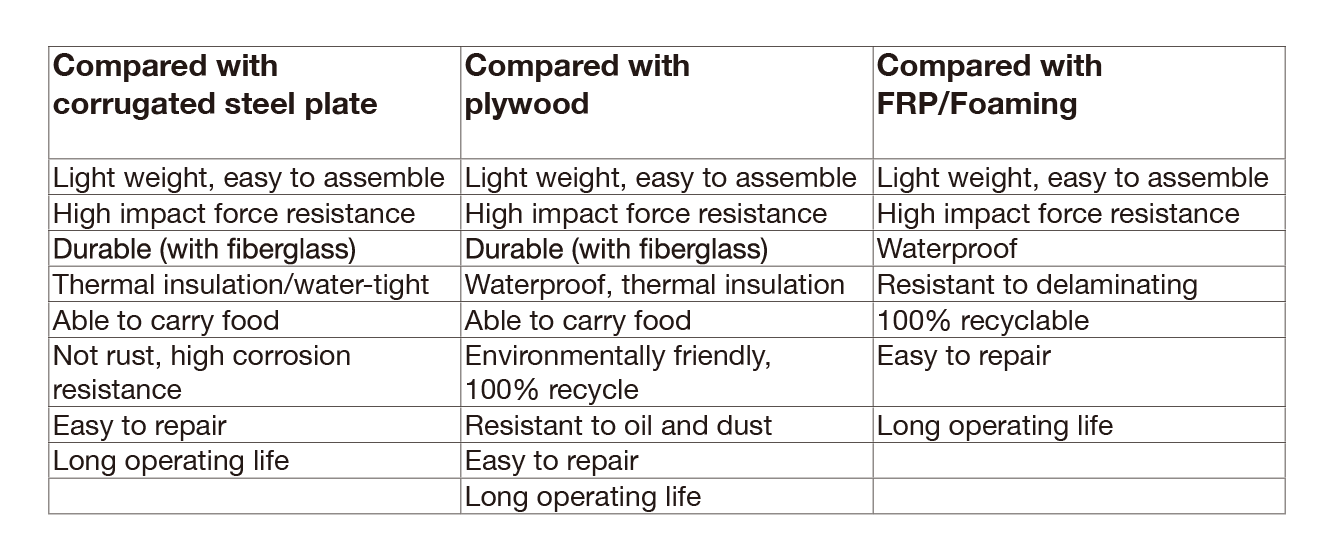

COMPARISONS OF ADVANTAGES

COMPARISONS OF ADVANTAGES

Compared

TECHNICAL FEATURES

TECHNICAL FEATURES

LIGHT WEIGHT
Ting-Chin Co.® is remarkably lightweight and of low density due to its honeycomb structure. For example, a truck-body made of Ting-Chin Co.® will greatly improve your payload ratio.

HIGH STRENGTH
Excellent impact resistance, it can resist common physical stress.

EASY TO JOIN AND ASSEMBLE
Panels can easily be joined by screws, bolts, riveting, or gluing and plastic-welding.

WATERPROOF AND MOISTURE PROOF
It is a special property of Ting-Chin Co.® . The material is impervious, resistant to water and is not hygroscopic when the surface is damaged.

RESISTANT TO CLIMATIC CONDITION
Ting-Chin Co.® is a thermoplastic material. Even so, it can be put to use in a temperature range of –40° to +80° Celsius.

EXCELLENT CHEMICAL RESISTANCE
Ting-Chin Co.® offers high resistance against oils, salt-water and common chemicals.

VOC/FORMALDEHYDE EMISSION FREE
Ting-Chin Co.® uses certified VOC/Formaldehyde free materials. Test Method: VDA275:1994

FIREPROOF
Ting-Chin Co.® uses certified fireproof materials. Test Method: GB8410-2006

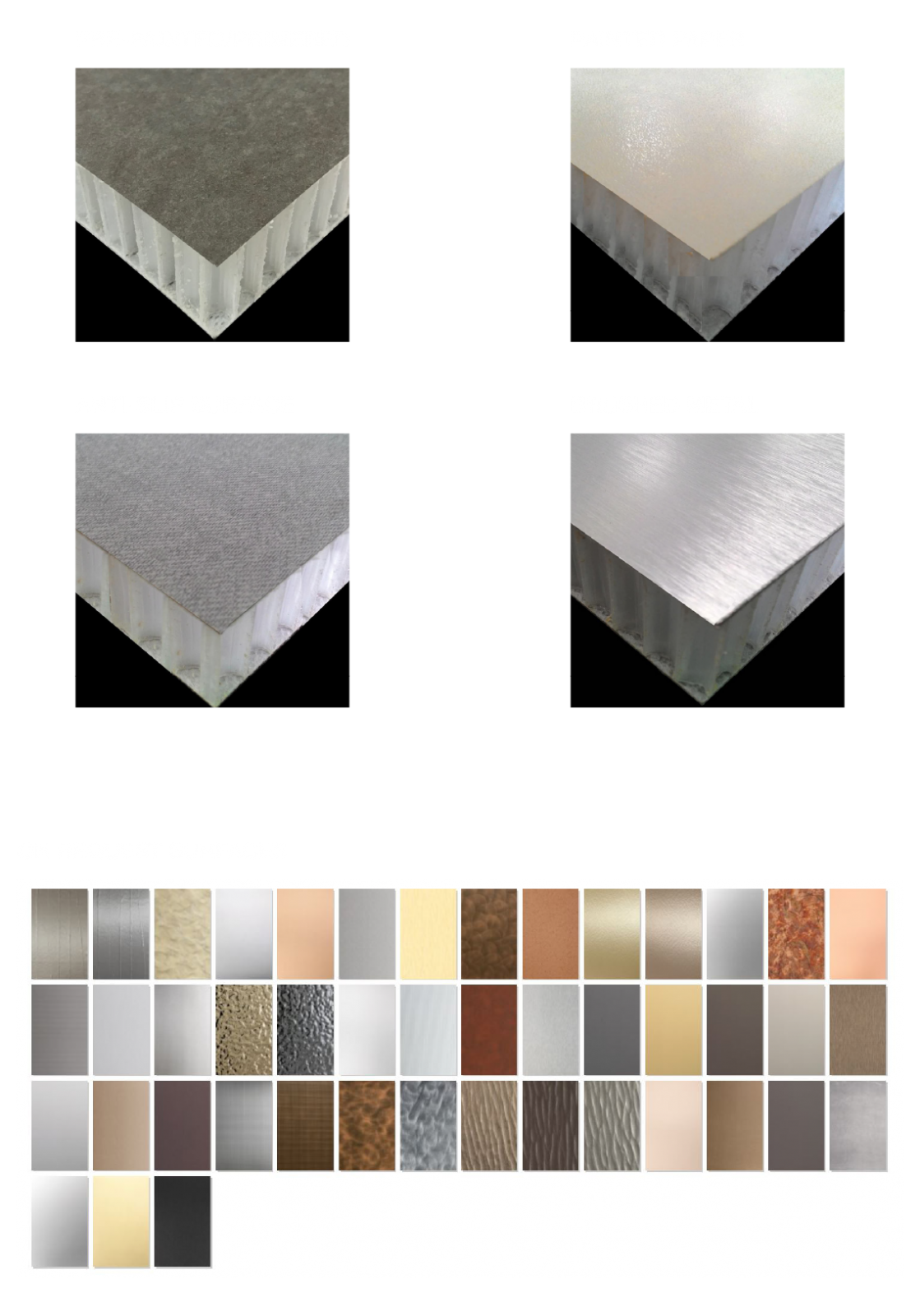

SURFACE QUALITIES

SURFACE QUALITIES

工作區域 16

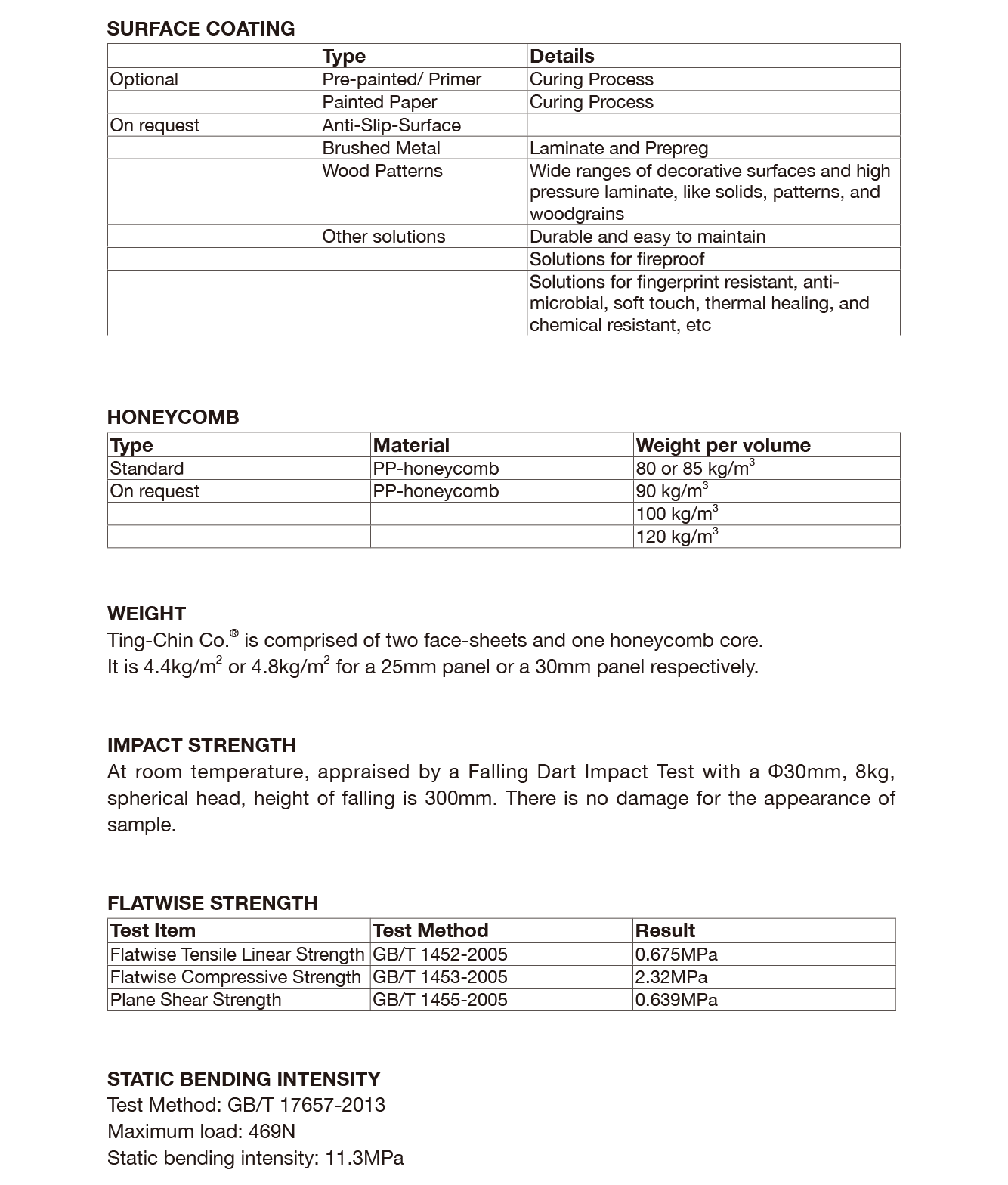

PANEL SPECIFICATIONS

PANEL SPECIFICATIONS

table

ENVIRONMENTAL FACTOR RESISTANCE

The face-sheets guarantee excellent UV-protection according to the tests.
Ting-Chin Co.® has excellent UV resistance without obvious signs of aging phenomenon compared with similar plastic materials which have a stronger tendency to surface cracks at intensive UV-irradiation. Ting-Chin Co.® offers high resistance against oil, fats, and the most commonly used chemicals. According to internal tests, the water absorption of the panel is below 1.4%.

THERMAL CONDUCTIVITY

Standard Ting-Chin Co.® can be used for thermal insulation materials, as its thermal conductivity is less than 0.12 W/mk at room temperature.

RECYCLABLE

Ting-Chin Co.® is 100% recyclable. Renomme® is a compound of PP and fiber-glass without other additives, such as adhesives.

TREATMENT

Ting-Chin Co.® can be shaped by stock removal or thermal forming, particularly suitable for riveting, welding or gluing.

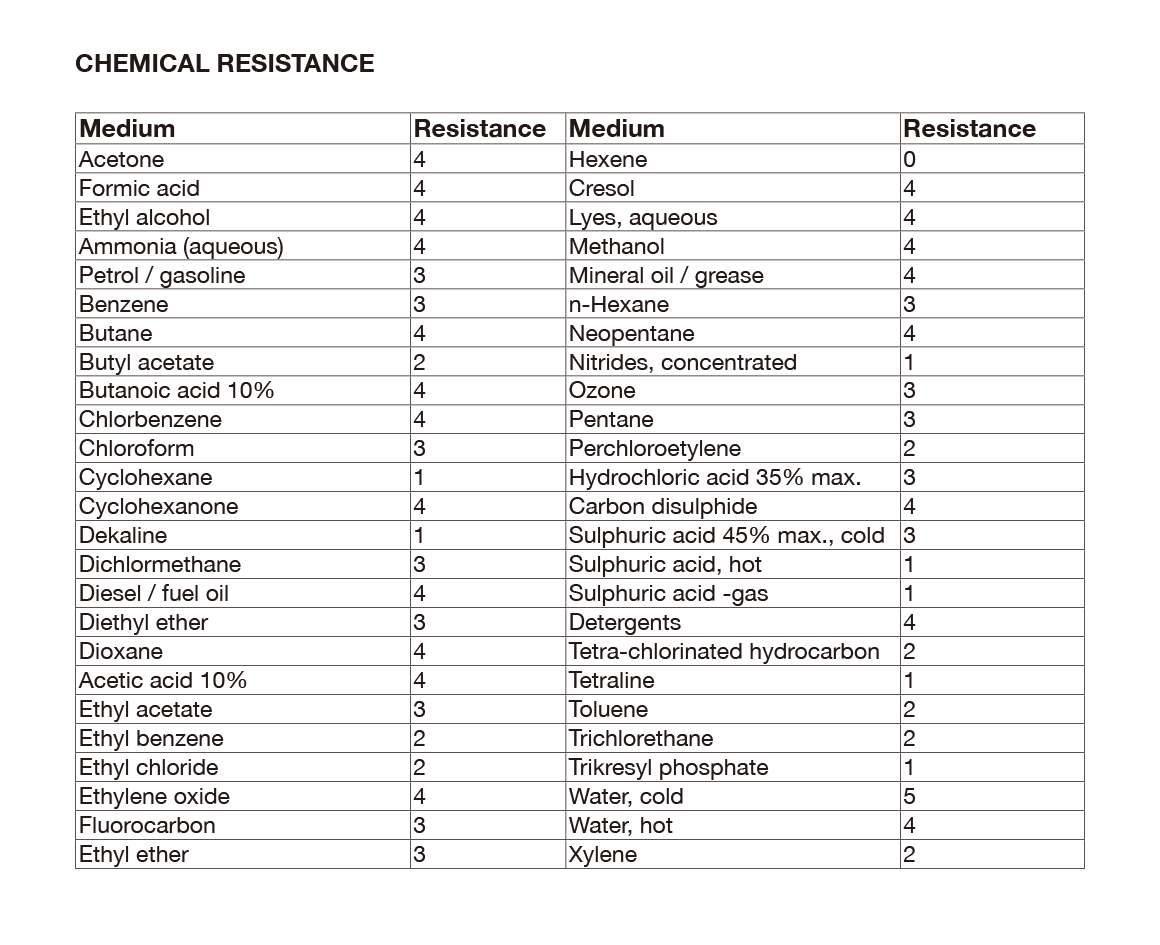

CHEMICAL RESISTANCE

The below table shows the chemical resistance of the polypropylene surface, and it is just for reference, as the results are subjected to actual parameters and experimental conditions in practical application.

table2

5 highly resistant
4 resistant
3 conditionally resistant 2 not resistant
1 very hazardous

This overview refers to the chemical resistance of the polypropylene surfaces. This evaluation is not binding; it is based on bibliographical references. For each specific application the chemical resistance needs to be defined and verified.

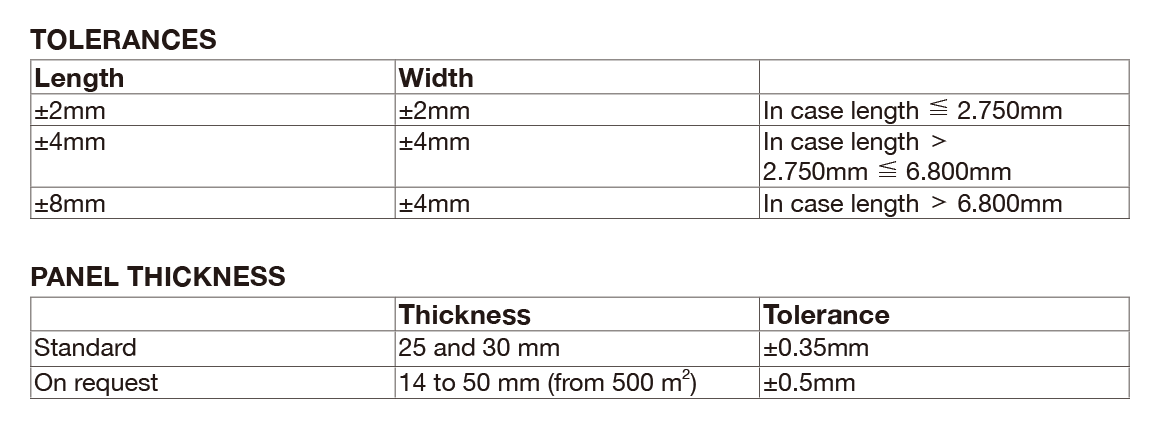

TECHNICAL DELIVERY TERMS

TECHNICAL DELIVERY TERMS

PRODUCTION SIZES
Length: 3,000mm Max.
Width: 1,500mm Max.
On request pieces cut to smaller custom sizes are available

工作區域 22

FABRICATION

FABRICATION

Ting-Chin Co.® – SIMPLE AND ALL-PURPOSE TO PROCESS
Besides of conventional processing technologies such as cutting, machining, gluing and mechanical joints, Ting-Chin Co.® provides further creative processing options.

THERMAL FORMING
Ting-Chin Co.® is a thermoplastic composite material and thus entirely appropriate for thermal forming. Easy hot and cold forming capability of Ting-Chin Co.® creates large scale weight reductions and enormous fields of applications for finished products.

• Bending
• Edge shaping and closing

FASTENING
Mechanical joints - bolted joints with screws, joints with blind rivets Fastening by gluing - adhesive bonding to Ting-Chin Co.®
Fastening by thermal welding - thermally fused connections

MACHINING
Ting-Chin Co.® can easily be machined with standard tools that are also used for processing wood such as circular saws, drills and milling machines, etc.

APPLICATIONS

APPLICATIONS

工作區域 24

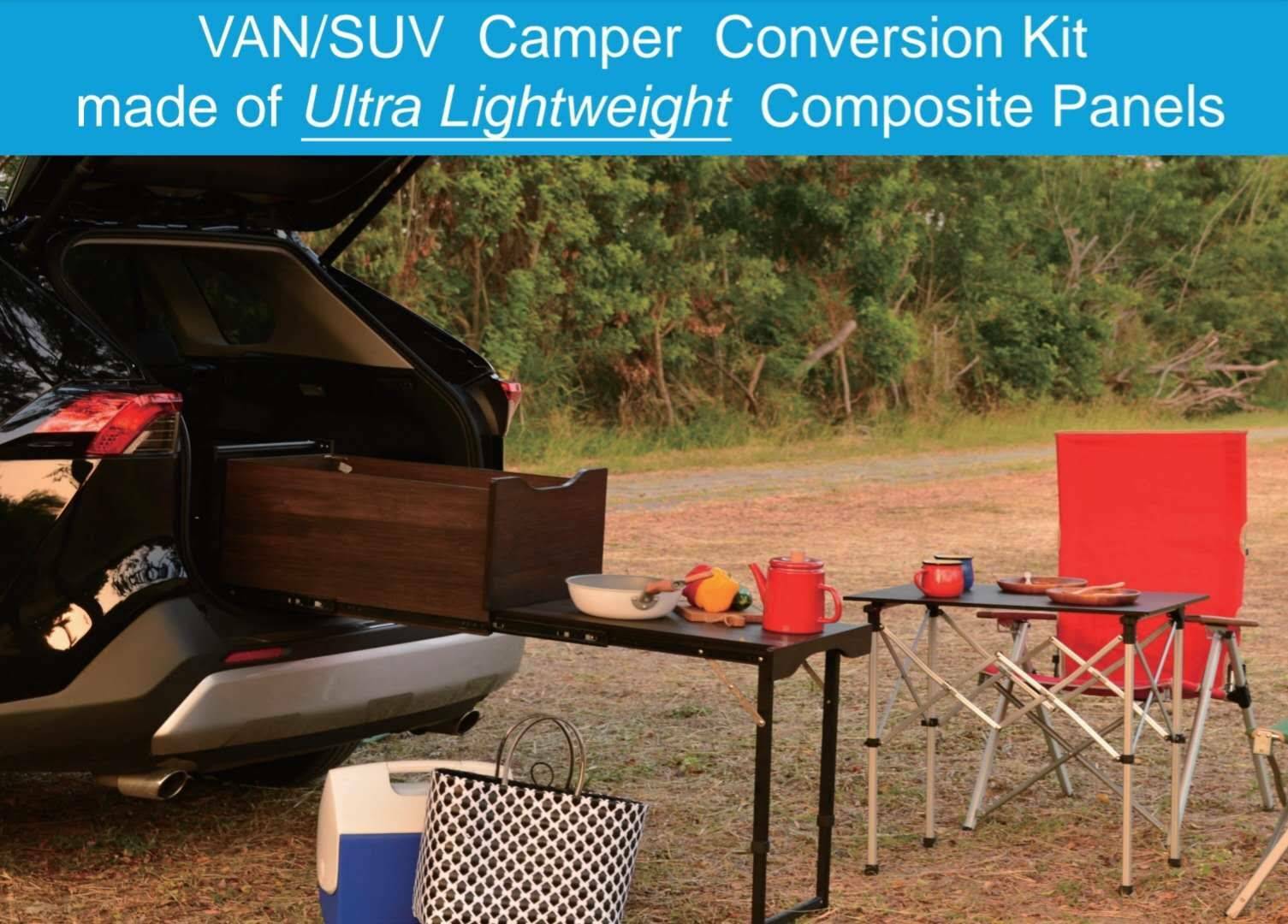

410227

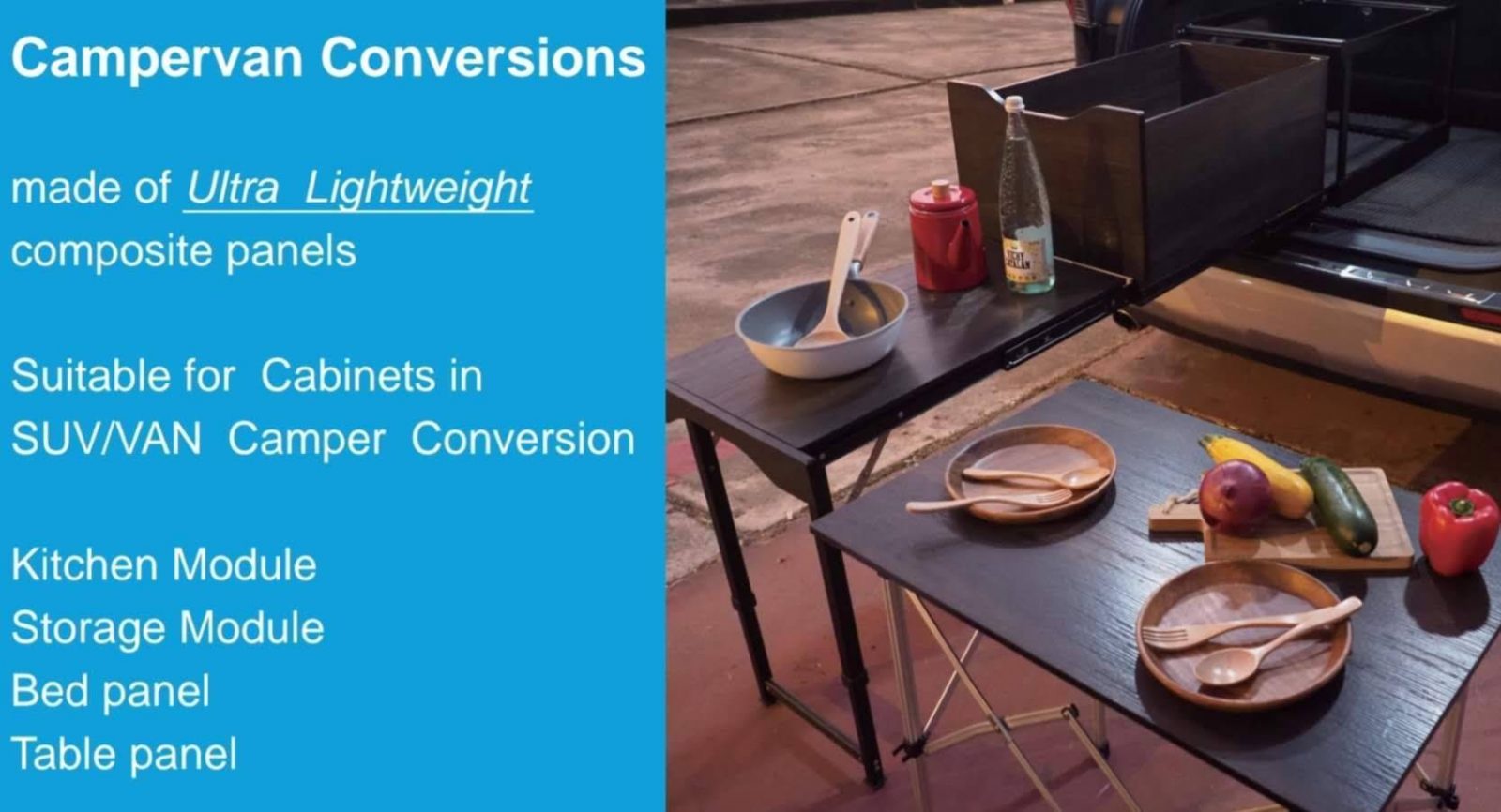

410228

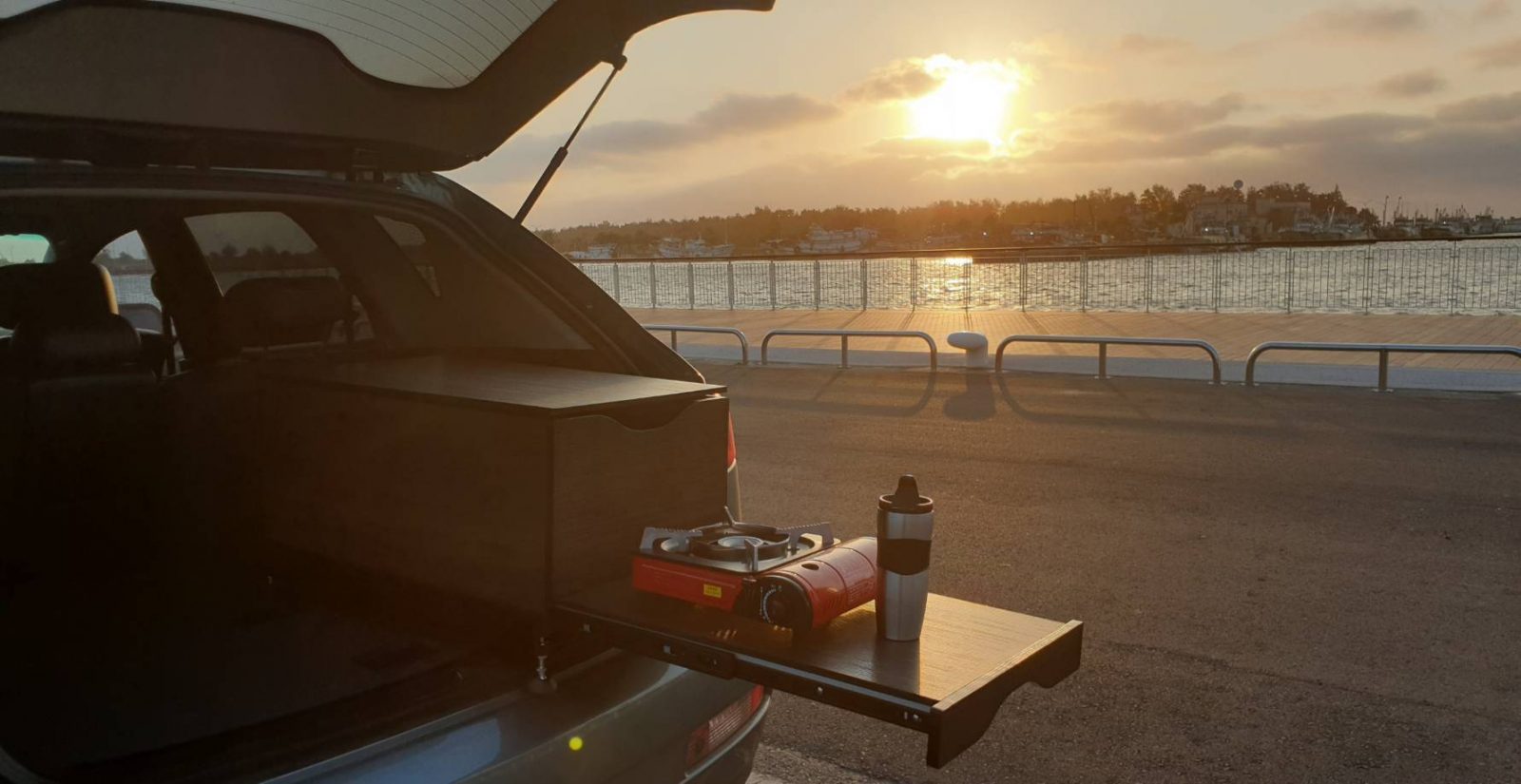

410234

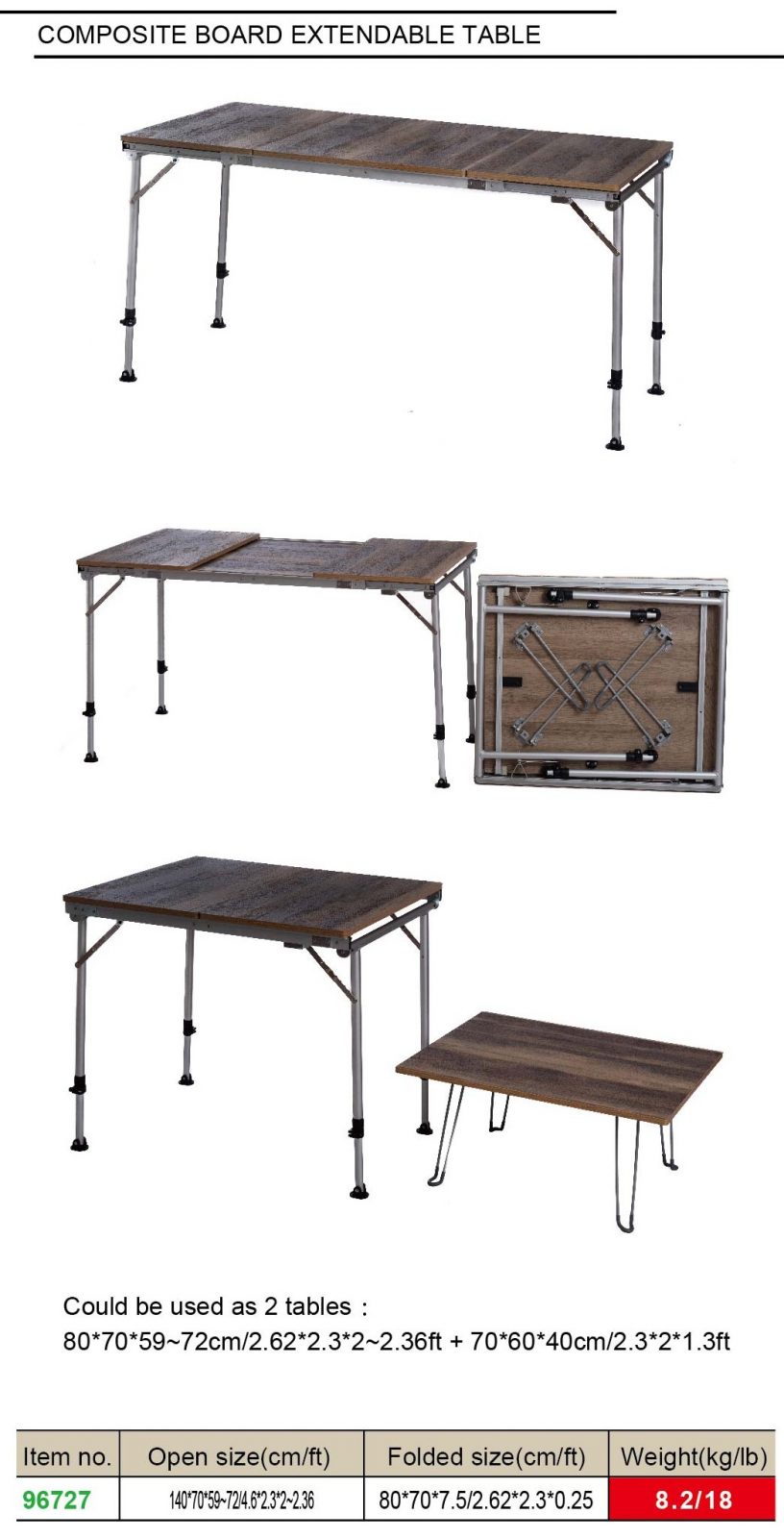

96725延伸桌-202305

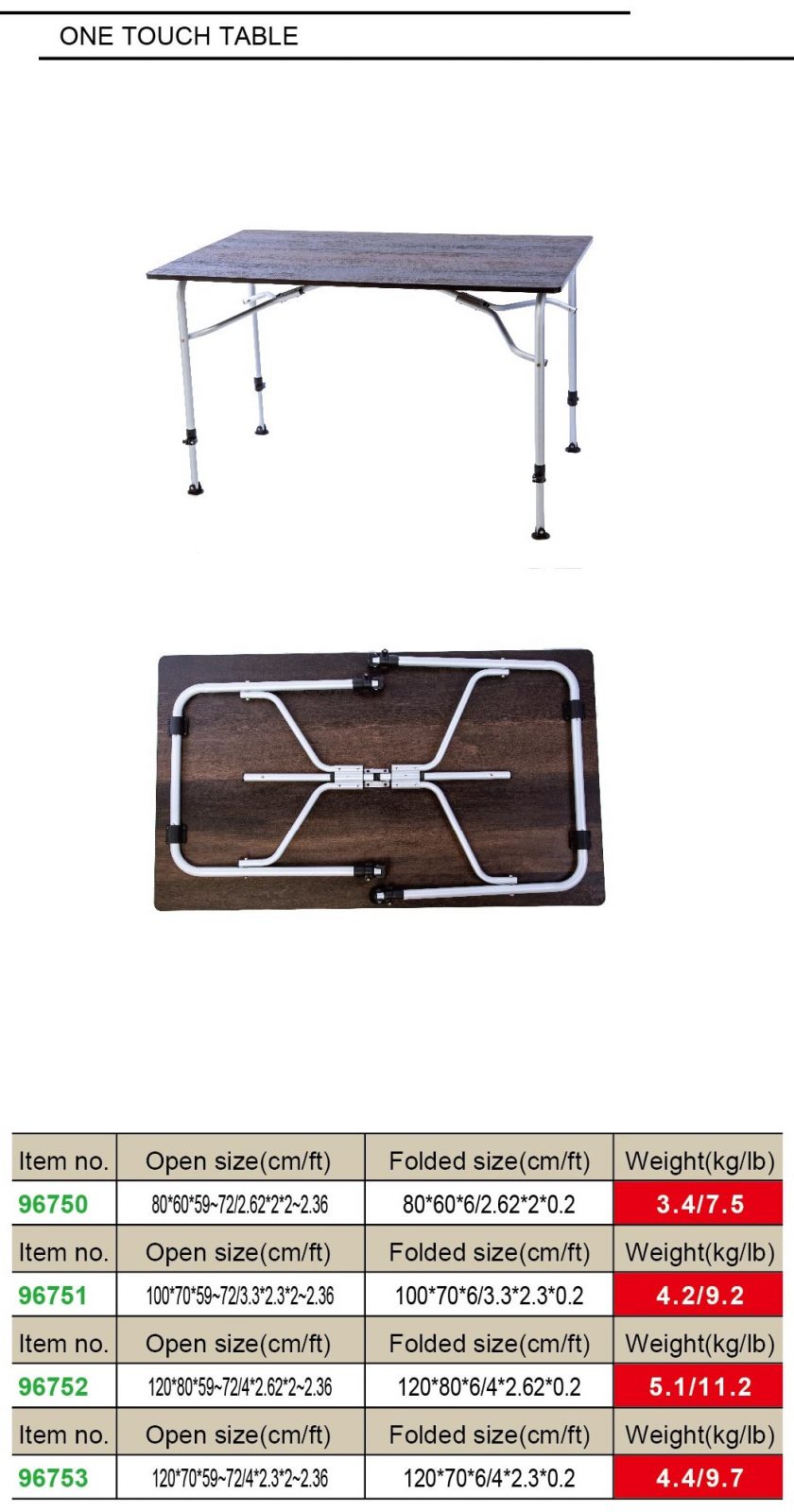

96750快速桌單片-202305

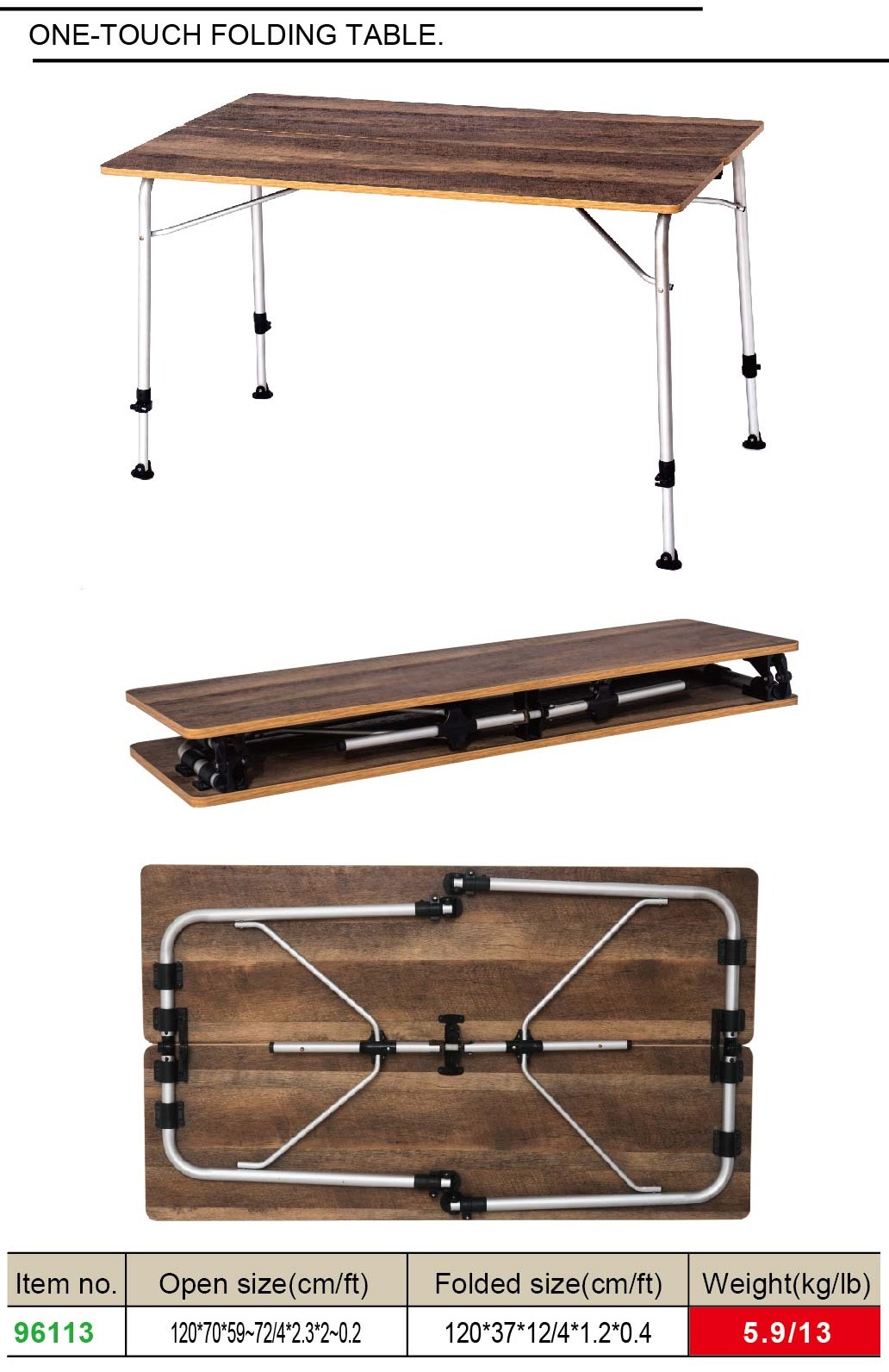

96113快速二折桌-202305
96770快速桌附抽屜-202305

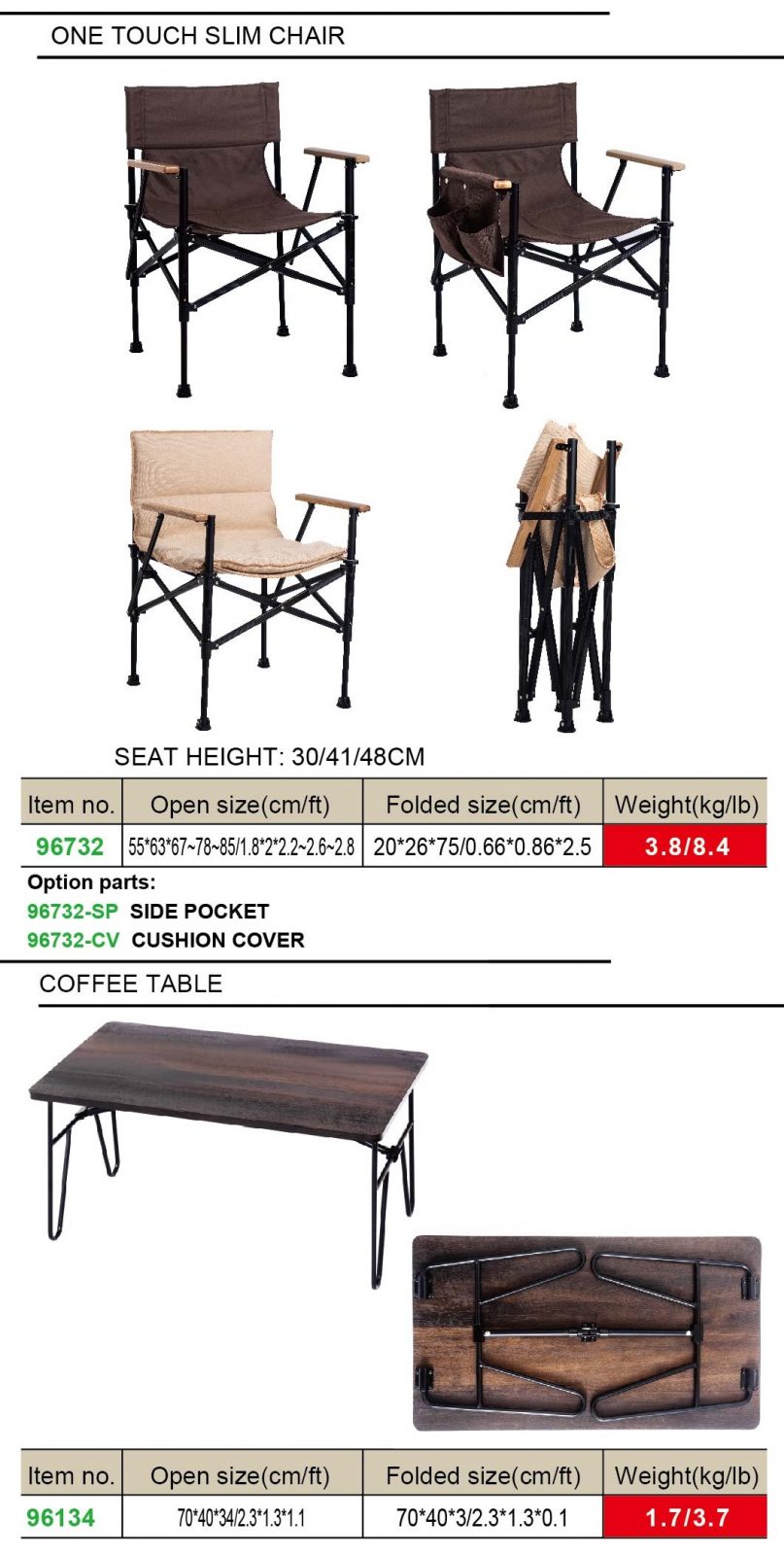

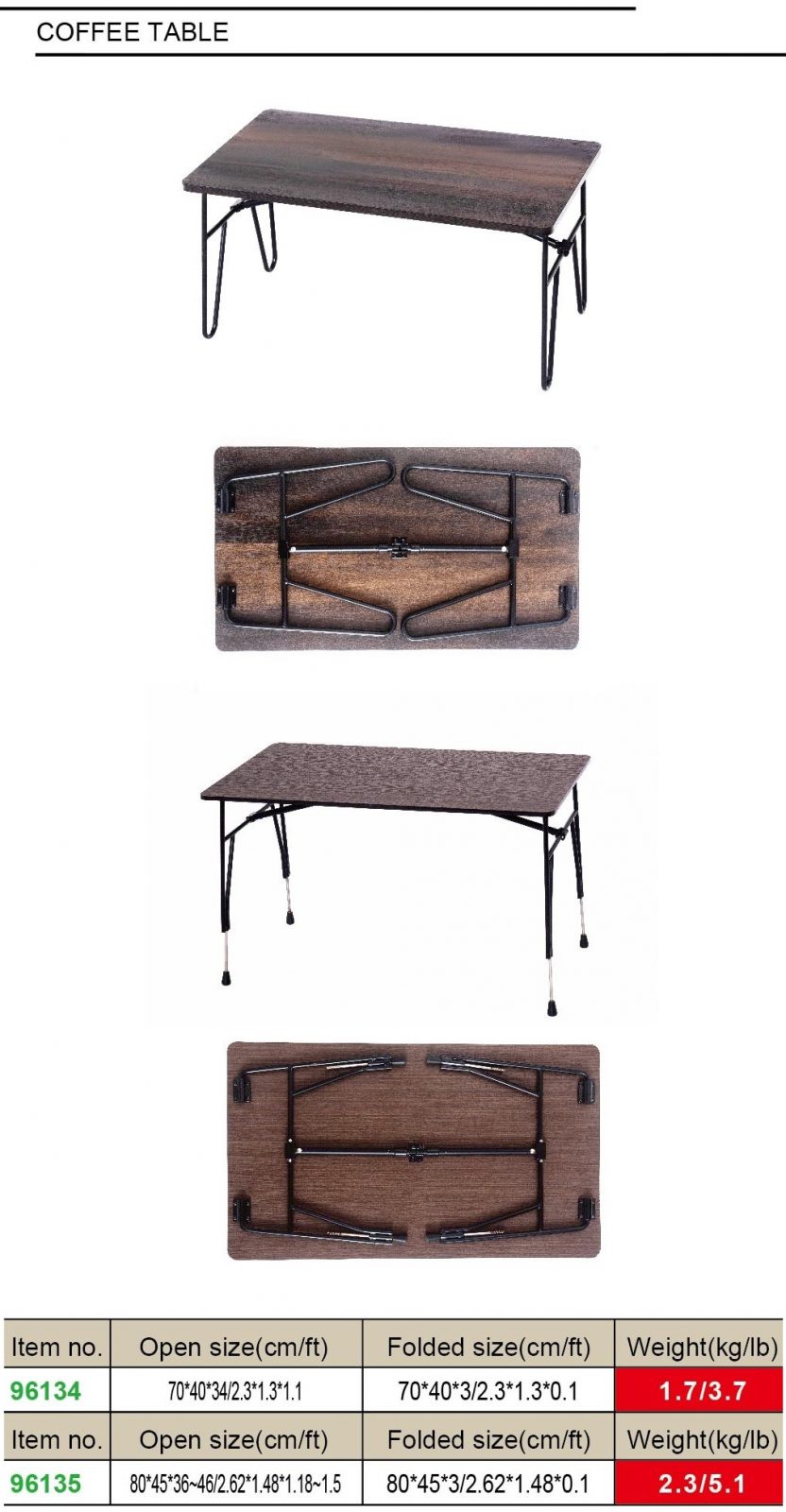

96134咖啡桌-202305

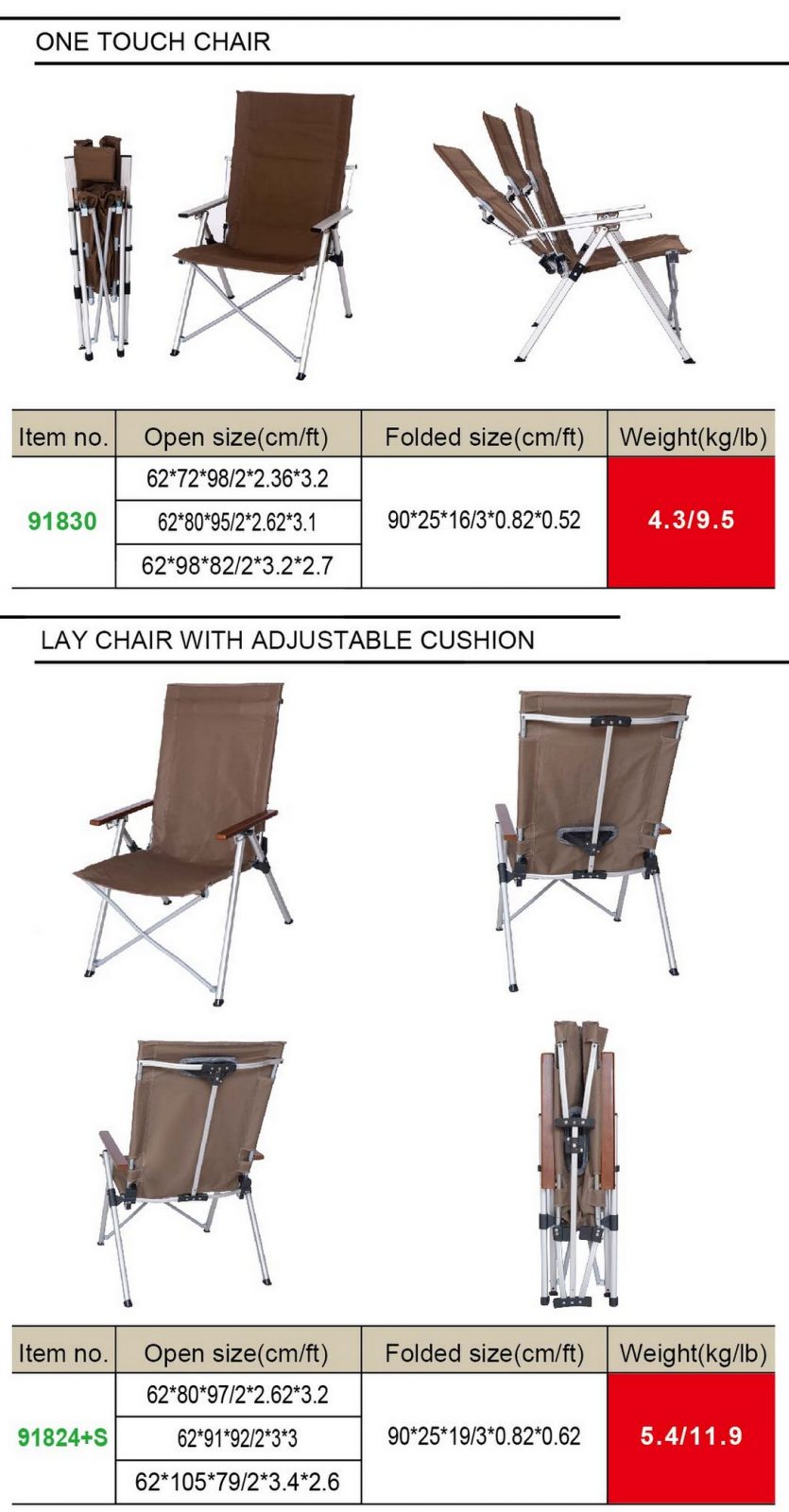

91830快速椅-91824+S躺椅加頭腰靠-202305

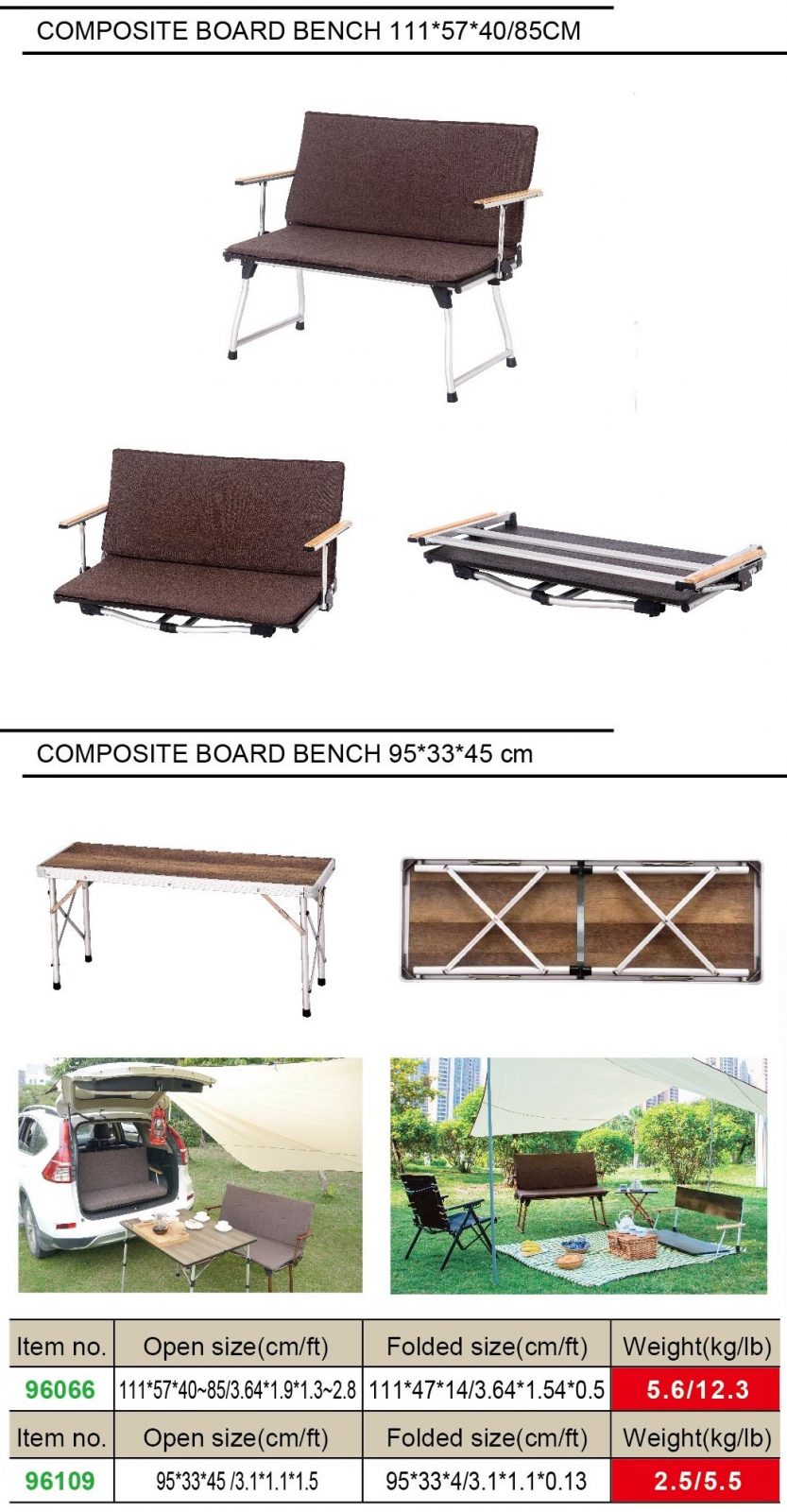

96066-96109長板凳-2023-05
